The CMSIS-DAP Firmware is programmed into Flash ROM of a Debug Unit. More...

The CMSIS-DAP Firmware is programmed into Flash ROM of a Debug Unit.

Once the CMSIS-DAP Firmware is configured it needs to be programmed into the Flash ROM of the new Debug Unit. MDK provides already Flash algorithms for many Cortex-M based microcontrollers and therefore you may use the Flash programming facilities that are provide in uVision.

Once Flash programming is configured you may use the uVision menu item Flash - Download.

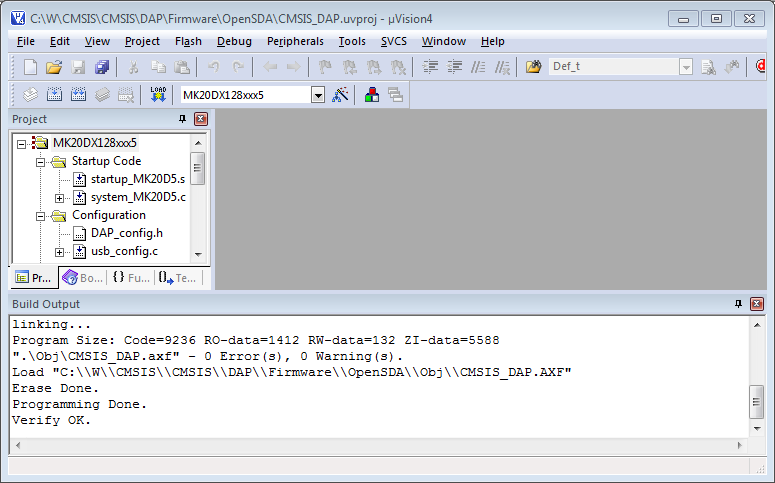

Download CMSIS-DAP Firmware to new Debug Unit using MDK
